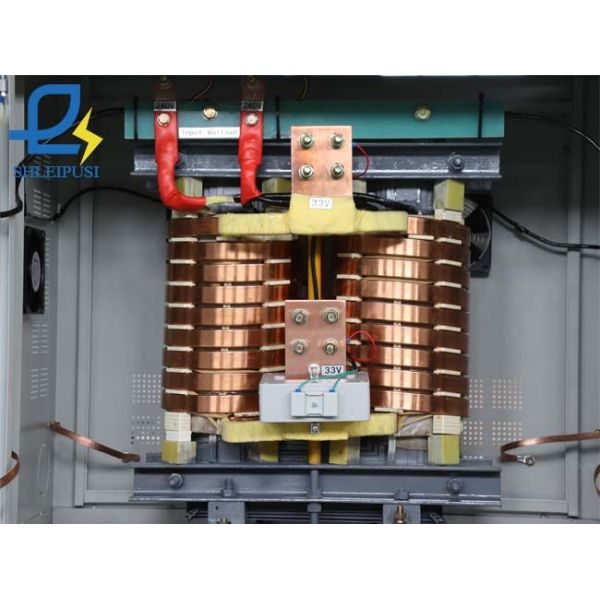

Furnace 40KVA High Current Transformer 240V To 33V Step Down Dry Type

Product Categories

Voltage Transformer [99]
Servo Voltage Regulator [56]
Variac Transformer [6]
Control Voltage Transformer [21]
Static Voltage Regulator [3]
Phase Converter Transformer [8]
Oil Immersed Transformer [3]
Current Type Voltage Transformer [10]
Servo Voltage Transformer [4]
Voltage Regulator Stabilizer [4]
Thyristor Controlled Voltage Regulator [2]
Variable Transformer [6]
Automatic Variac [5]

Shanghai Lepus Electrical Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Furnace 40KVA High Current Transformer 240V To 33V Step Down Dry Type

Name: Furnace 40KVA High Current Transformer 240V To 33V Step Down Dry Type
Brand: SHLEIPUSI Or Support OEM/ODM Service
Price: 1 USD

Quality Furnace 40KVA High Current Transformer 240V To 33V Step Down Dry Type for sale

Brand Name : SHLEIPUSI Or Support OEM/ODM Service

Model Number : DG-40KVA Or Customized

Certification : CE;ISO9001;UL

Place of Origin : Shanghai

MOQ : 1

Price : 1 pc≤Qty≤5 pcs 2780USD; 5 pcs＜Qty≤100 pcs 2700USD; 100pcs＜Qty 2650USD

Payment Terms : T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay

Supply Ability : 1000000PCS

Delivery Time : 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days

Packaging Details : Non-fumigation plywood case ; Reference packing size: 90X62X108CM; Reference weight: 240KG

Product name : 40KVA High-current Voltage Transformer

Place of origin : Shanghai, PRC

Rated capacity : 40KVA Or Customized

Product model : DG-40KVA

Rated input voltage : Single Phase 240V Or Customized

Rated output voltage : Single Phase 33V Or Customized

Output precision : ±2%

Working temperature : －15℃~＋45℃

Insulation resistance : ≥5MΩ

Contact Now

40KVA High-current Single Phase Voltage Transformer | SHLEIPUSI OEM/ODM Global Supply

Product Introduction

Our DG-40KVA 40KVA High-current Voltage Transformer is an industry-leading high current single phase transformer, manufactured by SHLEIPUSI for global clients spanning factories, CNC machine tools, photovoltaic systems, laser cutting machines, diamond cutting equipment, precision devices, generator manufacturers, blenders, residential and industrial power sites. Compliant with ISO9001, CE and UL international standards, this transformer delivers stable full-capacity operation, ultra-low energy loss, and fully customizable parameters, configurations and end-to-end OEM/ODM services to meet diverse power conversion needs worldwide.

Key Features & Advantages

This 40KVA high-current voltage transformer is engineered for superior performance, safety and durability. It adopts a high-permeability, noise-free silicon steel core with high magnetic flux, low temperature rise and minimal energy loss, paired with high-purity winding material for excellent conductivity and long-term stable operation. High-insulation materials withstand 3500V voltage tests, with a reinforced nylon frame for reliable insulation, F-class insulation rating, and ±2% output precision with no additional waveform distortion.

User-centric safety designs include a safety trip lock, highly insulated conductive terminals with convenient wiring, clear digital display for real-time working status monitoring, and intuitive input/output indicators. Its porous heat dissipation structure with built-in cooling fans rapidly reduces operating temperature to extend service life, while brake-equipped universal wheels enable flexible placement in any working scenario.

Why Choose Us

As a professional power solution manufacturer, we deliver full-cycle support for global partners. We offer comprehensive customization services for product parameters, appearance, LOGO, and packaging via flexible OEM/ODM solutions. Our strict full-process quality control system ensures every unit passes rigorous pre-shipment testing for zero-defect delivery.

With a monthly production capacity of 10,000 pcs for low-power products and 2,000 pcs for high-power units, we guarantee stable lead times, with a minimum order quantity of just 1 set to support both sample and bulk orders. We provide flexible global shipping via sea, air, land, express and railway, supporting all mainstream international trade terms. Our after-sales service includes a 2-year warranty, lifetime free telephone technical guidance, video installation support, free component replacement for quality issues, and optional on-site engineer service. We also offer free professional product photography and video services to support your marketing needs.

Technical Specifications

Item	Specification
Product Name	40KVA High-current Voltage Transformer
Brand	SHLEIPUSI (OEM/ODM Supported)
Rated Capacity	40KVA (Customizable)
Model	DG-40KVA (Customizable)
Rated Input Voltage	Single Phase 240V (Customizable)
Rated Output Voltage	Single Phase 33V (Customizable)
Working Frequency	50/60Hz
Display System	Digital display / Pointer meter
Output Precision	±2%
Insulation Class	F
Working Temperature	-15℃ ~ +45℃
Cooling Method	Dry type air cooling (with draught fans)
Certificates	ISO9001, CE, UL
Warranty	2 Years

Furnace 40KVA High Current Transformer 240V To 33V Step Down Dry Type

Frequently Asked Questions (FAQ)

What’s your lead time? 3-7 working days for standard products, 10 days for small batches, 20-30 days for bulk/customized orders.
How do you control product quality? We implement full-process inspection from raw material incoming to production, and only qualified products are shipped.
What are your payment terms? 30% deposit for standard products, 50% advance for customized orders, balance settled before shipment.
Do you provide installation technical support? Yes, our professional team offers video guidance and optional on-site installation support.
What’s your product packaging? Large products are packed in reinforced wooden cases, small ones in cartons, with customized packaging available.
Can you print our logo on the product? Yes, we accept full OEM/ODM services, with logo printing available for bulk orders.
What’s your main market? Our products cover the globe, including Central Asia, East Asia, South Asia, Africa, South America and North America.
What’s your production capacity? 10,000 pcs/month for low-power products, 2,000 pcs/month for high-power units.
What’s your minimum order quantity? Our MOQ is 1 set, supporting both sample trial and bulk orders.
What certificates do your transformers have? We hold ISO9001, CE and UL certifications to meet global market access requirements.
What’s the warranty period of this transformer? We provide a 2-year warranty for all standard and customized transformers.
Can you customize the input and output voltage? Yes, we fully support customized voltage parameters based on your actual application needs.
What working frequency does this transformer support? It supports 50/60Hz, compatible with the grid standards of most countries and regions worldwide.
What cooling method does this transformer use? It adopts dry type air cooling with built-in draught fans for efficient heat dissipation during full-capacity operation.
What service do you offer after the warranty expires? We provide lifetime free telephone technical guidance, with paid on-site maintenance and component replacement available on request.
